OM Announces OM-3 Camera, Three Lenses
6 February 2025
OM Digital Solutions has announced the OM System OM-3 Micro Four Thirds camera, its M.Zuiko 100-400mm f5.0-6.3 IS II and two primes: the M.Zuiko Digital 17mm f1.8 II and 25mm f1.8 II. Details follow.
CAMERA
With its compact body inspired by the Olympus OM-1 film SLR, the new OM-3 features flagship-level performance, customizable creative tools and robust video capabilities.
Among its more interesting features, at least for JPEG shooters, are its built-in computational photography features. Enabling them while capturing JPEGs provides live Neutral Density filtration, HDR and Focus Stacking in-camera.
You can also customize both color and monochrome profiles to create a unique style of mimic film.
Highlights of the new camera include:
- 20-megapixel stacked BSI Live MOS MFT sensor
- TruePic X engine
- 3.0-inch 1.62m-sot swivel touchscreen LCD
- 2.36m-dot OLED electronic viewfinder
- 5-axis in-body image stabilization
- Computational photography button
- Built-in 2 to 64 stop electronic ND filter
- High-res shot, Live ND, Composite modes
- IP53 weather-sealed, freezeproof design
- Single UHS-II SD card slot
Specifications for the OM-3 include:
,
OM SYSTEM OM-3 SPECIFICATIONS Sensor 20.4-Megapixel Four Thirds BSI MOS sensor
Crop Factor: 2x
Aspect Ratio: 4:3Bit Depth 14-Bit Lens Mount Micro Four Thirds File Formats Raw, JPEG Storage Dual Slot: SD/SDHC/SDXC (UHS-II) Viewfinder Built-in 2,036,000-dot OLED
27mm eyepoint
100 percent coverage
1.23x magnification
-4 to +2 diopter adjustmentMonitor 3.0-inch, 1,620,000-dot articulating touchscreen LCD Shutter Mechanical Shutter:
- 1/8000 to 60 seconds Electronic Front Curtain Shutter:
- 1/320 to 60 seconds Electronic Shutter:
- 1/32000 to 60 secondsFrame Rate Up to 120 fps at maximum resolution ISO ISO 200 to 25,600 Autofocus Yes Live View Yes Image Stabilization 5-axis sensor-shift Flash No built-in flash, shoe mount TTL
Maximum Sync Speed: 1/250 secondMovie H.264/H.264 Long GOP/MOV/MPEG-4 AVC 4:2:0 8-Bit:
- DCI 4K (4096 x 2160) at 24.00/25/30.00/50/60.00 fps
- UHD 4K (3840 x 2160) at 24.00/25/30.00/50/60.00 fps
- 1920 x 1080 at 24.00/25/30.00/50/60.00 fps
H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
- 4096 x 2160 at 24.00/25/30.00/50/60.00 fps
- 3840 x 2160 at 24.00/25/30.00/50/60.00 fps
- 1920 x 1080 at 24.00/25/30.00/50/60.00 fps
External 4:2:2/4:2:0 8/10-Bit via HDMI
- DCI 4K (4096 x 2160)
FLAT, HDR-HLG, OM-Log
Stereo mic
IP streamingConnectivity QwiFi, Bluetooth
Micro-HDMI output, stereo microphone input and output, USB-C input/outputPower BLX-1 rechargeable lithium-ion battery Dimensions 5.5 x 3.5 x 1.8 inches Weight 1.1 lb. OM said the OM=3 will be late this moth for $1,999.99 (body only) or $2,299.99 bundled with the M.Zuiko Digital ED 12-45mm f4 PRO lens. Adorama and B&H are both now accepting pre-orders.

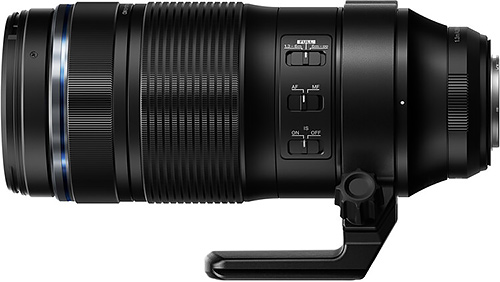

ZOOM LENS
The M.Zuiko Digital ED 100-400mm f5.0-6.3 IS II lens for the Micro Four Thirds System features a focal length range of 200-800mm (35mm equivalent) and with the MC-20 2x teleconverter extends that to 1600mm.
Its 5-axis sync IS system offers up to 7.0 steps of shutter speed compensation, for crisp, steady handheld shots even at extreme magnification. It's built with an IPX1-rated splash-proof performance and dust-resistant design.
Highlights of the new zoom include:
- Micro Four Thirds
- Apertures: f5 to f22
- Focal Range: 200-800mm (35mm equivalent)
- Movie and still compatible AF system
- Optical image stabilization
- Removable, rotating tripod collar
- Two Super HR elements, two HR elements
- Four ED Elements
- ZERO Coating and Fluorine Protected
Weather-Sealed Construction
Specifications for the zoom include:
M.ZUIKO DIGITAL ED 100-400mm f5.0-6.3 IS II LENS SPECIFICATIONS Mount Micro Four Thirds Focal Length 100mm to 400mm (200mm to 800mm 35mm equivalent) Aperture Maxium Aperture: f5.0 to f6.3
Minimum Aperture: f22
7 rounded diaphragm bladesAngle of View 12° to 3.1° Minimum Focus 0.82 feet Magnification 0.08x Optical Design 21 elements in 15 groups
Two Super HR elements, two HR elementsAutofocus Yes Image Stabilization Filter Thread 72mm Dimensions 3.4 x 8.1 inches Weight 2.9 lbs. OM said the M.Zuiko Digital ED 100-400mm f5.0-6.3 IS II Lens will be available beginning in late February, at a suggested retail price of $1,499.99. Adorama and B&H are both now accepting pre-orders.
PRIME LENSES
OM also introduced two new primes: the M.Zuiko Digital 17mm f1.8 II and 25mm f1.8 II. Both lenses are equipped with fast and quiet autofocus, ensuring sharp, professional-quality images and videos with ease.
M.Zuiko Digital 17mm f1.8 II: A wide-angle lens ideal for landscapes and cityscapes with a fast f1.8 aperture. It's the equivalent of a 34mm focal range in 35mm.
M.Zuiko Digital 25mm f1.8 II: A standard focal-length lens for capturing realistic perception and depth. It's the equivalent of a 50mm focal range in 35mm.
Highlights of the new primes include:
- Micro Four Thirds
- Apertures: f1.8 to f22
- IPX1-Rated Design and ZERO Coating
- Rounded 7-blade diaphragm
Specifications for the new lenses include:
M.ZUIKO DIGITAL 17mm f/1.8 II LENS SPECIFICATIONS Mount Micro Four Thirds Focal Length 17mm (34mm equivalent) Aperture f1.8 to f22 Angle of View 65° Minimum Focus 9.84 inches Magnification 0.8x Optical Design 9 elements in 6 groups
One DSA element, Two Aspherical elementsAutofocus Yes Image Stabilization No Filter Thread 46mm Dimensions 2.3 x 1.5 inches Weight 4 oz.
M.ZUIKO DIGITAL 50mm f/1.8 II LENS SPECIFICATIONS Mount Micro Four Thirds Focal Length 25mm (50mm equivalent) Aperture f1.8 to f22 Angle of View 47° Minimum Focus 9.84 inches Magnification 0.12x Optical Design 9 elements in 7 groups Autofocus Ywa Image Stabilization No Filter Thread 46mm Dimensions 2.3 x 1.7 inches Weight 5.5 oz. Olympus said the M.Zuiko Digital 17mm f1.8 II and 25mm f1.8 II lenses will be available in late February. The M.Zuiko Digital 17mm f1.8 II will be $549.99 while the 25mm f1.8 II lens will be $499.99.
Adorama and B&H are both now accepting pre-orders for the 17mm. Adorama and B&H and B&H are both now accepting pre-orders for the 25mm.
Introducing the OM System OM-3 Mirrorless Camera
Bringing the Classic Elegance of an SLR Design into the Future of Creative Photography
BETHLEHEM, Pa. -- OM Digital Solutions has announced the OM System OM-3, an interchangeable lens camera that redefines creative photography. Available in stores beginning in late February, the OM-3 combines the timeless elegance of a classic SLR design with innovative features to empower photographers and video creators alike.
With its sleek, compact body inspired by the iconic Olympus OM-1 film SLR, the OM-3 delivers flagship-level performance, customizable creative tools and robust video capabilities. Designed for those who demand both form and function, this camera invites users to explore their artistic potential, whether capturing stills or cinematic content.
Key Features
Key Features of the OM System OM-3 include:
- Timeless Design Meets Advanced Performance: Combines the aesthetic appeal of a classic SLR with the portability and technological capabilities of modern cameras.
- Customizable Color and Monochrome Profile Controls: Empowers photographers to create unique visual styles, recreating the classic look of film photographs.
- Innovative Computational Photography Features: Access creative tools like Live ND/GND, HDR and Focus Stacking directly in-camera, eliminating the need for post-processing.
- Cinematic Video Capabilities: Optimized for video creators with seamless mode switching, heat management for extended recording and new OM-Cinema video profiles.
The OM-3 reflects OM System's commitment to advancing the art of photography, offering an all-in-one solution for creators who demand performance, flexibility and artistic freedom.
Pricing and Availability
Pricing and availability for the OM System OM-3:
- The highly anticipated OM System OM-3 Mirrorless Camera will be available starting in late February, with a suggested retail price of $1,999.99/$2,799.99. A bundled kit, which includes the OM-3 camera body and the M.Zuiko Digital ED 12-45mm f4 PRO lens, will also be offered at a suggested retail price of $2,299.99/$3,199.99.
- Additionally, the M.Zuiko Digital 17mm f1.8 II and 25mm f1.8 II lenses will be available beginning in late February. The M.Zuiko Digital 17mm f1.8 II will be priced at $549.99/$769.99, while the 25mm f1.8 II lens will retail for $499.99/$699.99.
Detailed product specifications for the OM System OM-3 Please see the OM System Web site for detailed product specifications.
Introducing a Super Telephoto Zoom Lens with 5-axis Sync IS
BETHLEHEM, Pa. -- OM Digital Solutions has announced the M.Zuiko Digital ED 100-400mm f5.0-6.3 IS II lens, a highperformance super telephoto zoom lens designed exclusively for the Micro Four Thirds System. Engineered for photographers who demand precision, reliability and portability, this compact and lightweight lens empowers users to capture stunning images in the most challenging environments. The M.Zuiko Digital ED 100-400mm f5.0-6.3 IS II lens will be available for purchase beginning in late February.
Offering a focal length range of 200-800mm (35mm equivalent) and compatibility with the MC-20 2x teleconverter, extending the reach up to an impressive 1600mm, this lens delivers unparalleled versatility for bird and wildlife photography. Its 5-axis sync IS system offers up to 7.0 steps of shutter speed compensation, ensuring crisp, steady handheld shots even at extreme magnification. Built with an IPX1-rated splash-proof performance and dustresistant design, this lens is designed to thrive in demanding outdoor conditions, making it the ultimate tool for capturing the beauty of nature.
Key Features
Key features of the M.Zuiko Digital ED 100-400mm f5.0-6.3 IS II include:
- Unrivaled Reach: A compact, lightweight super telephoto zoom lens equivalent to 200-800mm1 on its own, extending to 1600mm2 with the optional MC-20 2x teleconverter.
- Advanced Image Stabilization: Supports 5-axis sync IS4 for exceptional handheld shooting with up to 7.0 steps of shutter speed compensation3.
- Reliable All-Weather Durability: IPX1-rated splash-proof performance and dust-resistant design, plus a fluorine-coated front element for worry-free use in the toughest conditions.
With its cutting-edge technology and robust construction, the M.Zuiko Digital ED 100-400mm f5.0-6.3 IS II lens redefines possibilities for wildlife and outdoor photographers.
Pricing and Availability
The M.Zuiko Digital ED 100-400mm f5.0-6.3 IS II Lens will be available beginning in late February, at a suggested retail price of $1,499.99/$2,099.99.
OM System Launches Camera, Lenses Designed for Photographers on the Go
Blending Heritage Style Design with Advanced Features for Every Creator's Camera Bag
BETHLEHEM, Pa. -- OM Digital Solutions has announced its latest innovations in digital imaging: the OM System OM-3 Mirrorless Interchangeable Lens Camera and two premium prime lenses, the M.Zuiko Digital 17mm f1.8 II and 25mm f1.8 II. Designed for photographers and creators of all skill levels, these products deliver a perfect combination of style, performance and versatility, opening doors for creative exploration.
Transforming the Creative Experience
The OM System OM-3 Camera The OM System OM-3 marries the timeless elegance of a classic SLR with cutting-edge technology. Inspired by the iconic Olympus OM-1 film camera, its compact and lightweight body features intuitive controls and powerful capabilities equip creators of both stills and video with a versatile tool at their fingertips.
Key Highlights
- Timeless Design Meets Advanced Performance: Merging a sleek, retro-inspired design with the latest in imaging technology.
- Customizable Profiles for Creative Individuality: Create signature styles with intuitive color and monochrome profile controls.
- Innovative Computational Photography Features: Access features like Live ND/GND, Focus Stacking and HDR directly in-camera -- no additional software needed.
- Cinematic Video Capabilities: Seamlessly switch between stills and professional-grade video with OM-Cinema profiles and extended recording reliability.
Whether capturing stills or cinematic content, the OM-3 offers unbeatable versatility, making it a powerful tool for any creative journey.
High Performance Prime Lenses for All Your Needs
The M.Zuiko Digital 17mm f1.8 II and 25mm f1.8 II lenses complement the OM-3's capabilities, offering exceptional performance and durability. Compact and lightweight, these lenses feature robust splash- and dust-proof construction, making them perfect companions for your travels, whether capturing the sights on urban streets or iconic landmarks.
Lens Highlights
- M.Zuiko Digital 17mm f1.8 II: A wide-angle lens ideal for landscapes and cityscapes, with a large f1.8 aperture for stunning bokeh and depth of field control.
- M.Zuiko Digital 25mm f1.8 II: A standard focal-length lens for capturing realistic perception and depth, perfect for portraits and everyday photography.
Both lenses are equipped with fast and quiet autofocus, ensuring sharp, professional-quality images and videos with ease.
Crafted for Creators, Designed to Roam
Together, the OM System OM-3 and the M.Zuiko Digital Prime Lens II series offer a comprehensive solution for creators who demand style, performance and reliability. With their weather-sealed designs and innovative features, photographers and videographers can confidently tackle any project, no matter the conditions.
Pricing and Availability
- The highly anticipated OM System OM-3 Mirrorless Camera will be available starting in late February, with a suggested retail price of $1,999.99/$2,799.99. A bundled kit, which includes the OM-3 camera body and the M.Zuiko Digital ED 12-45mm f4 PRO lens, will also be offered at a suggested retail price of $2,299.99/$3,199.99.
- Additionally, the M.Zuiko Digital 17mm f1.8 II and 25mm f1.8 II lenses will be available beginning in late February. The M.Zuiko Digital 17mm f1.8 II will be priced at $549.99/$769.99, while the 25mm f1.8 II lens will retail for $499.99/$699.99.
